The Velocity mod source sets a value every time a note is played. The harder you play, the higher the value.

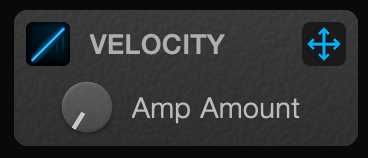

• The small graph
  Shows an adjustable curve that controls the mod source output level.
• Amp Amount knob
  Controls the amount that the Oscillators are affected by velocity. When it is on zero, the Oscs play at full volume. When it is on full, lower velocity notes will sound quieter than high velocity notes.
  This is similar in concept to creating a link between Velocity and the Output level of each Oscillator - but much easier to do.

Input / Output Popover

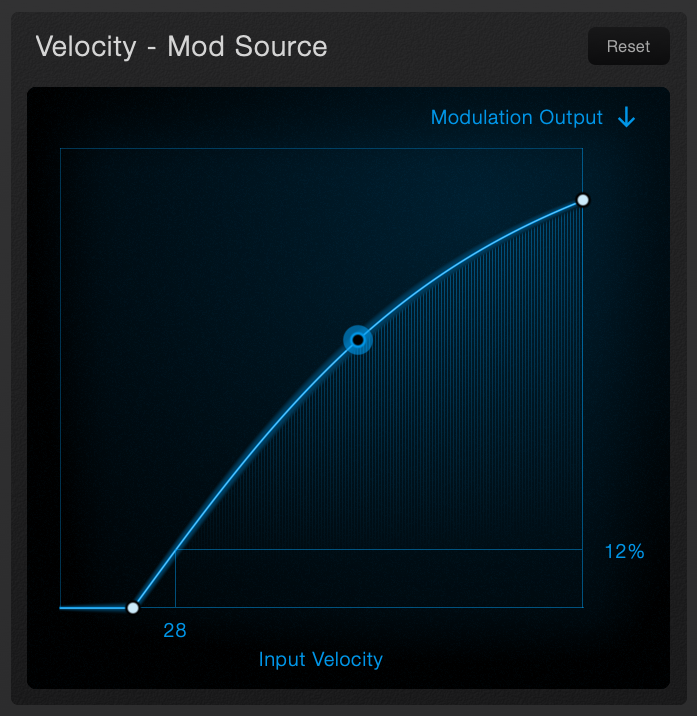

Clicking the small graph will launch the input / output popover.

• The X axis of the graph shows the MIDI input value.
• The Y axis shows the modulation output value.
• Hover on the graph to show the output values at a given input level.
• Playing a MIDI note will show the output value at that note.
• In the example above, playing a note with velocity 28 will output a value of 12% to any connected mod targets.
• You can adjust the curve by dragging the handles in the graph.
• In the example above, a note played at velocity 28 will output a value of 12%.
