When the Arpeggiator / Squencer is active, it can be used as a mod source.

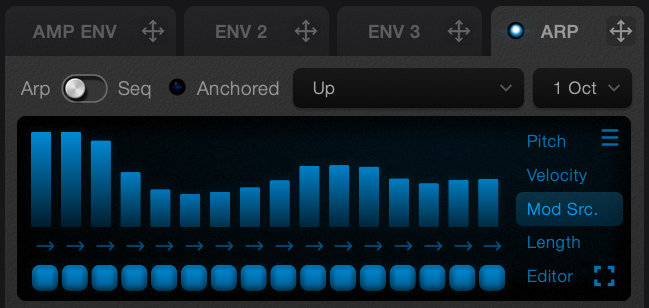

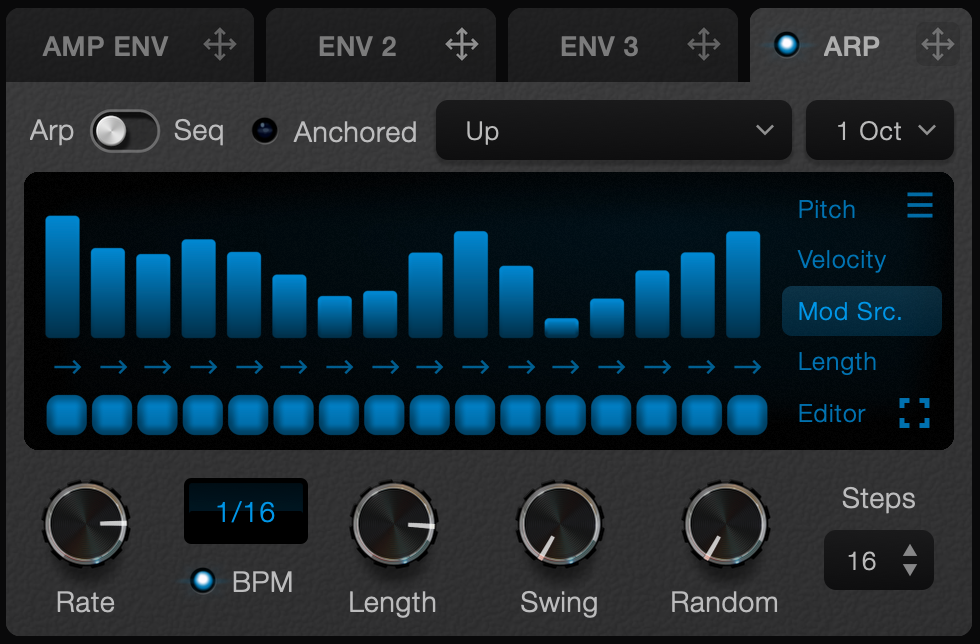

• Click the Mod Source button at the center right of the arp screen to show the mod source values for every step of the Arp / Sequence.
• Click and drag the bars on the screen to set the mod source values.
• Click and drag the Cross icon on the Arp tab to connect the Arp mod source to a parameter. You can also drag the Mod Src. label from the screen.

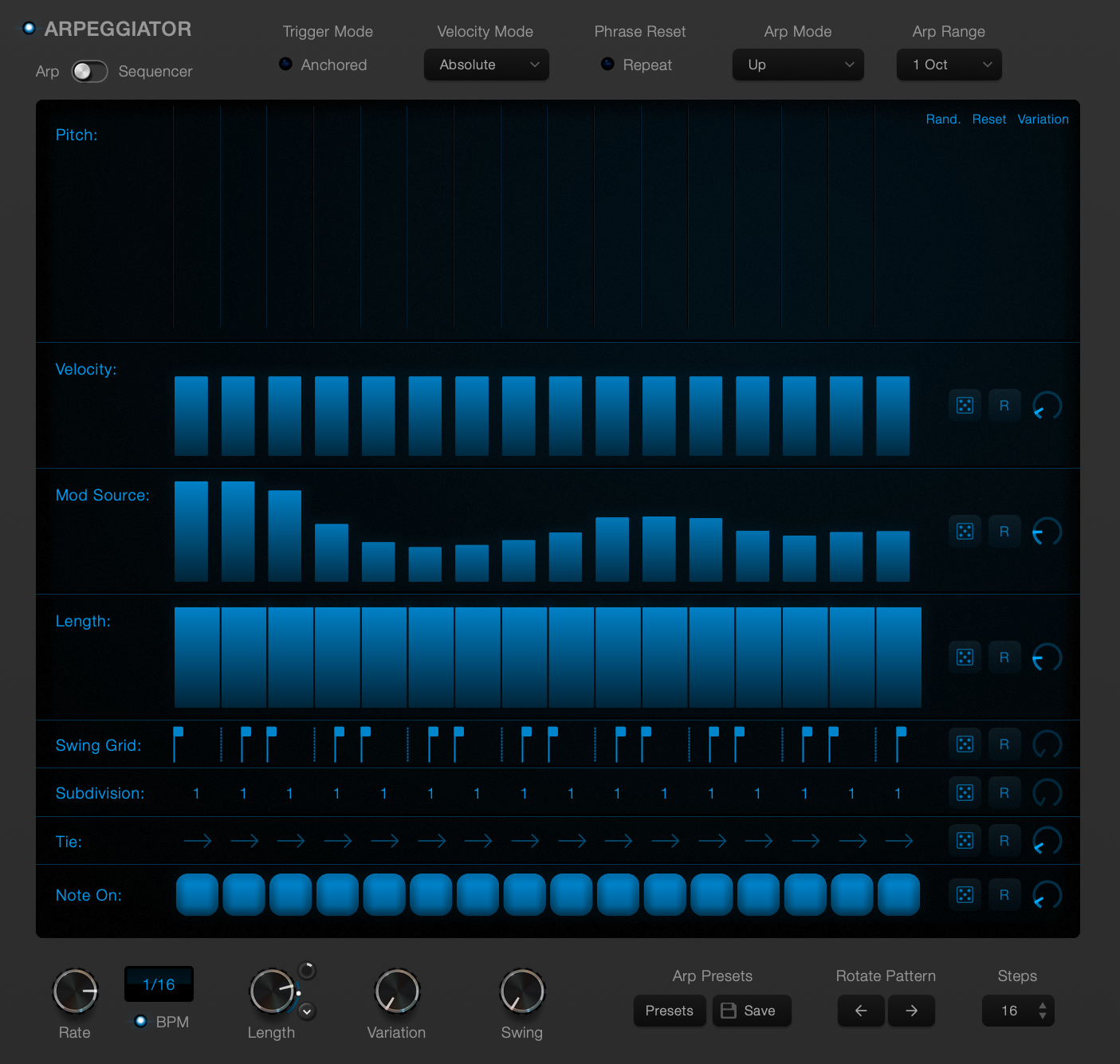

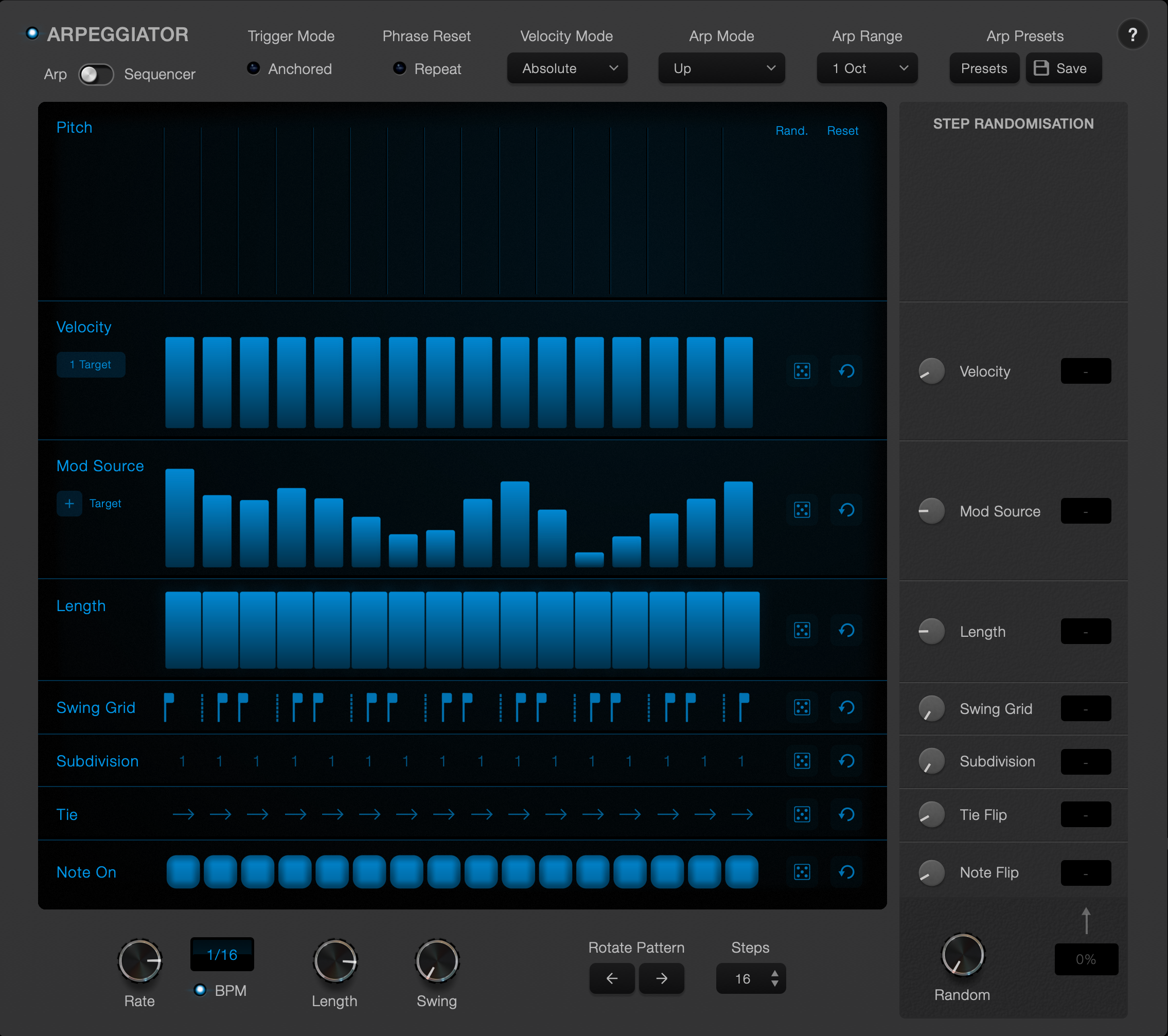

Large Arp Editor

• In the large Arp Editor, the mod source lane is always visible.
• Click the dice icon in this lane to randomise the mod source values.
• Clicking [R] will reset the value for each step to their default.
• The knob on the right side controls how much the variation knob of the arp will affect the Arp mod source.
