Main Filter Controls

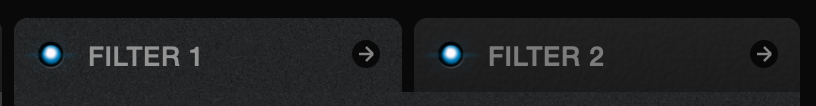

• Filter tabs
  Click to select Filter 1 or Filter 2
• Filter enabled Switch
  Turns the filter on and off
• Filter output switch
  Change the output routing of the filters

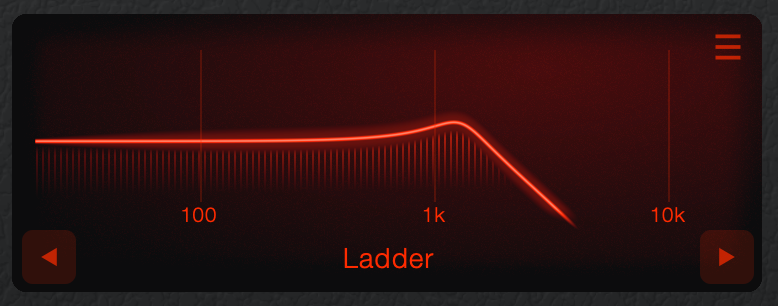

• Filter Screen
  Shows the frequency curve for the selected filters. Dragging the screen will adjust the base Cutoff and Resonance levels.
• Filter Mode Selector
  Choose between the different Filter modes.

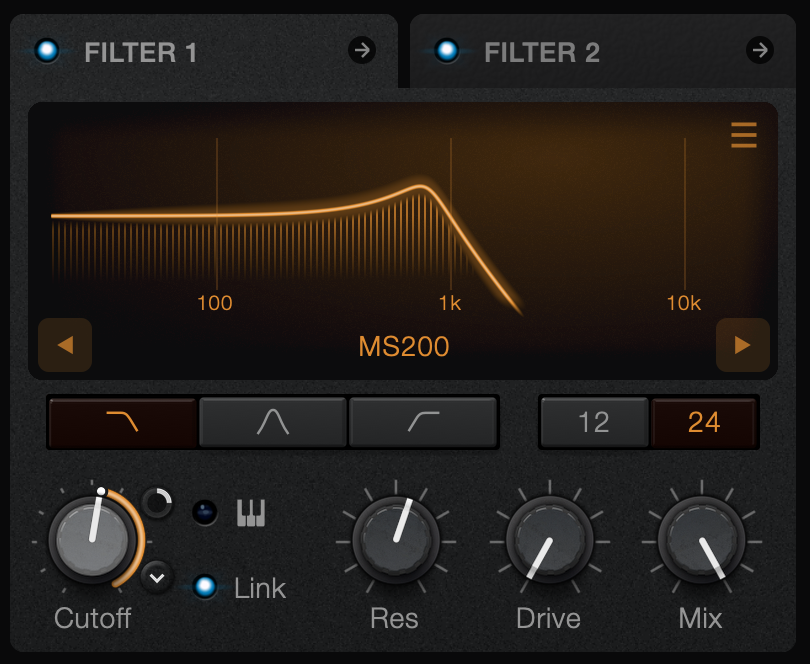

Filter Mode

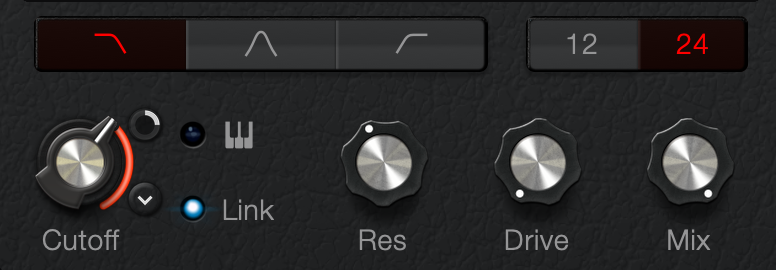

The following controls are available when the filter is set to MG Ladder, MS 200, or Clean mode:

• Filter shape selector
  Choose Low pass, Band pass or High pass.
• Filter slope selector
  Allows 12 or 24 Db per octave.
• Cutoff knob
  Controls the frequency of the selected filter. A good modulation target - try dragging Env 2 to the cutoff
• Keyfollow Button
  When enabled, adjusts the cutoff based on the note being played. The cutoff knob becomes an offset knob.
• Link Button
  Links the cutoff of filter 1 and filter 2.
• Resonance
  Creates a boost peak at the cutoff frequency.
• Drive
  Adds a drive amount to the filter circuit. The drive is different for each mode. Clean mode does not have a drive circuit.
• Mix
  Blends the output between the filtered and dry signals.

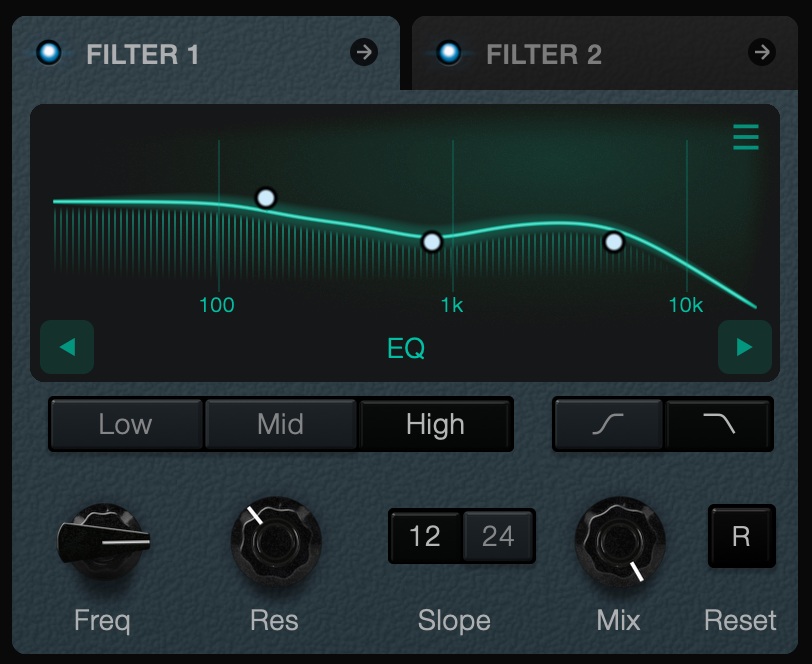

EQ Mode

The EQ is split into three bands. The controls correspond to the selected band.

• Low and high bands can be switched between an low / high pass filter and a shelf.
• Pass filters have a slope switch, while shelves have a gain control.
• The mid band be switched between a bell and a notch.
• You can drag the handles in the EQ graph to quickly adjust the 3 bands.

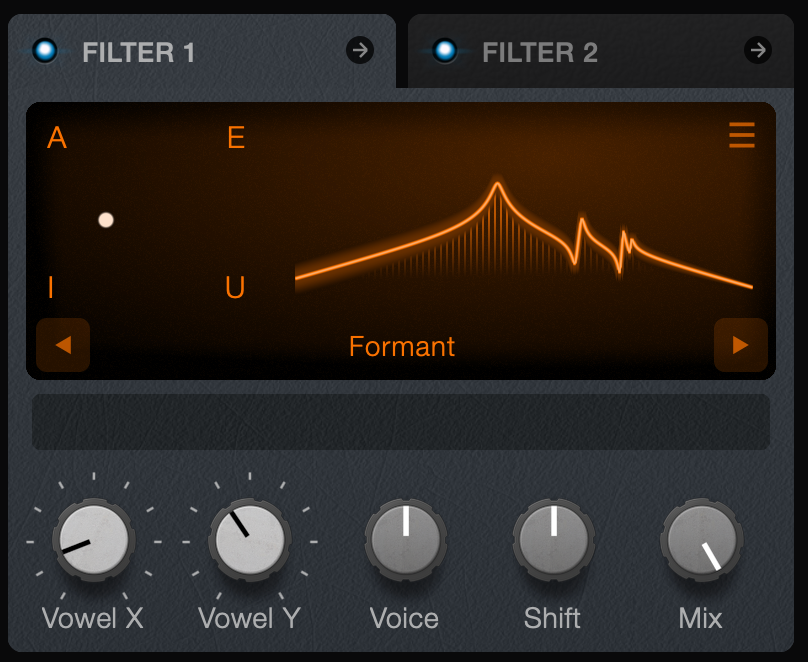

Formant Filter

• Drag the handle in the EQ graph to change between the four vowel sounds.
• Vowel X and Vowel Y: adjust the X and Y positions of this handle
• Voice: adjusts the formant between female and male voices
• Shift: moves all adjustments up and down in frequency
• Mix: blends between the dry and filtered signal

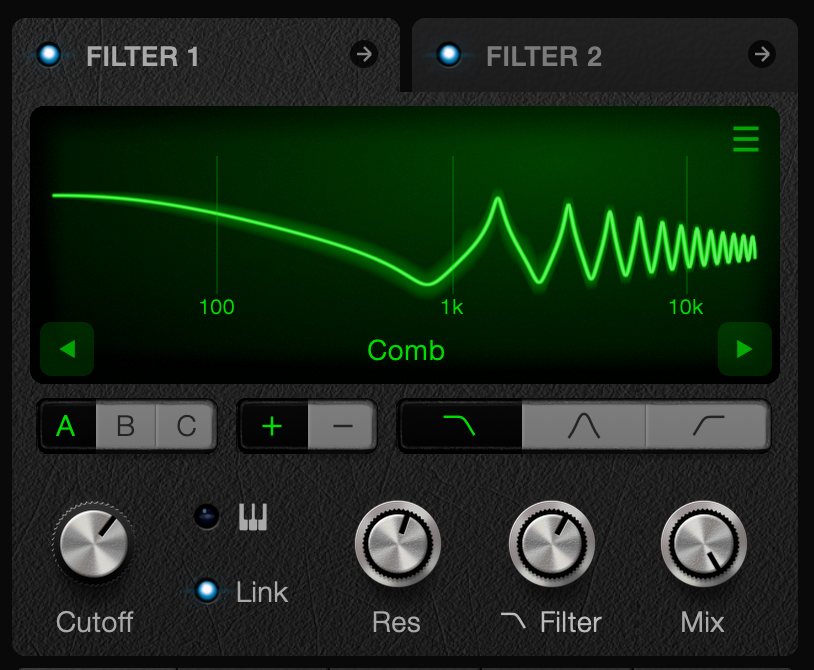

Comb Filter

• ABC Switch
  Change the mode of the comb filter.
• Plus Minus Switch
  Change the polarity of the peaks
• Filter Shape Switch
  Combined with the Filter knob, limits the comb peaks in the high, low or center of the frequency spectrum.
• Cutoff Knob
  Adjust the frequency of the entire comb.
• Keyfollow Switch
  Adjusts the cutoff to match the note you play. When in this mode, the cutoff knob becomes an offset knob
• Link Button
  Links the Filter 1 cutoff to the filter 2 cutoff
• Res Knob
  Adjusts the resonance of the combs.
• Filter Knob
  Combined with the Filter Shape Switch, limits the comb peaks in the high, low or center of the frequency spectrum.
• Mix Knob
  Blends between the dry and filtered signal.

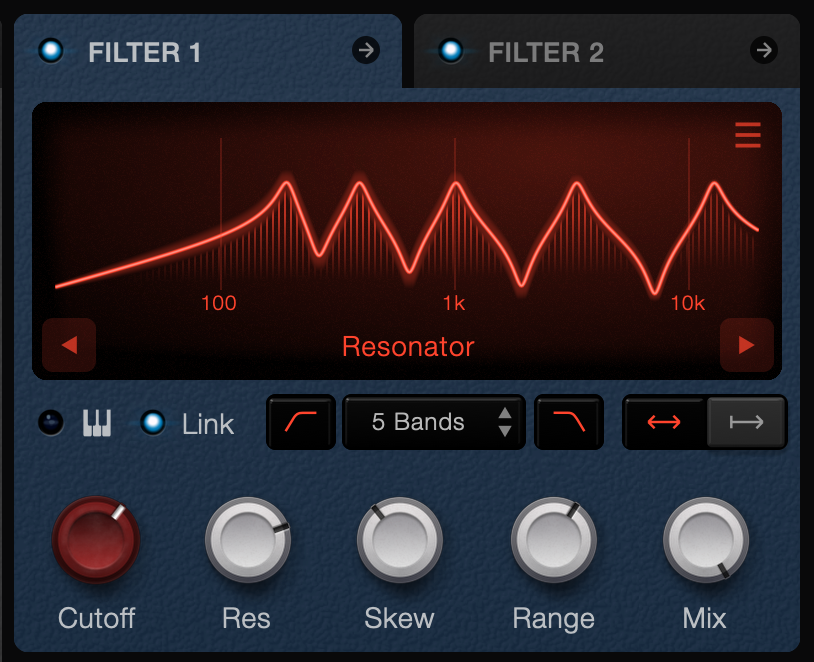

Resonator

• Keyfollow Switch
  Adjusts the cutoff to match the note you play. When in this mode, the cutoff knob becomes an offset knob
• Link Button
  Links the Filter 1 cutoff to the filter 2 cutoff
• Low cut enabled Switch
  Adds a High Pass filter to the resonator.
• Band Selector
  Choose the number of bands.
• High cut enabled Switch
  Adds a Low Pass filter to the resonator.
• Alight Centre / Left switch
  Determines whether the centre resonator band or left band frequency is set to the cutoff.
• Cutoff Knob
  The frequency of the left or centre band.
• Res Knob
  Adjusts the resonance of each band. At high values the filter will self oscillate.
• Skew Knob
  Adjusts the distribution of the bands towards the left or right.
• Range Knob
  Sets the distance between the lowest and highest band.
• Mix Knob
  Blends between the dry and filtered signal.
