Voice Modulation Source

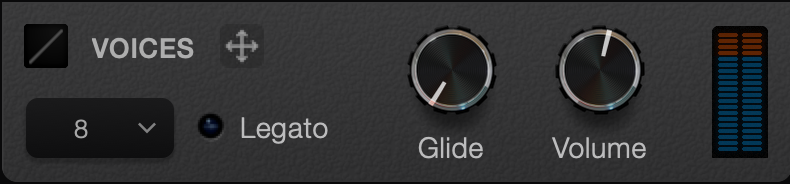

• Voice graph, Voices Drag Icon
  The section at the top left controls the voices mod source.
• Voice Count Dropdown
  Restricts how many voices can play. When you are holding more notes than the voice count, the oldest note will be stopped in order for the new note to be played.
  If the control is set to mono, only one note can be played at a time.
• Legato Switch
  When enabled, In Mono Mode, holding one note and then playing a new note will not trigger the new note but instead change the pitch of the original note.
  When not in mono mode, if you play the same note twice and the first note is in the release phase of the envelope, the envelope will glide to the attack level, and the note will note be triggered again.
• Glide Knob
  Controls the time it takes to glide to the next note.
• Volume Knob
  Controls the volume of the entire patch. It can be modulated.
• Output Meters
  Show the audio level. If the level clips, a clipping light will show at the top of the meter. Click the meter to reset the clipping light.
