Effects Busses

Routing

  • Audio from the Oscillators is routed through the voice filters, and then into the effects section

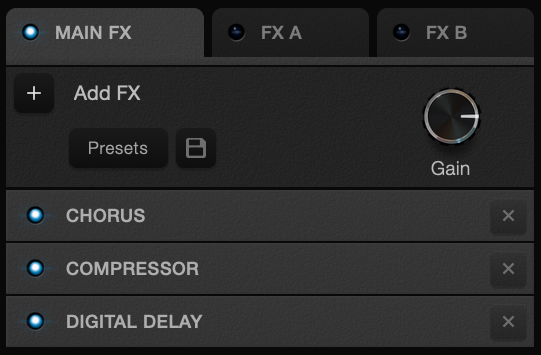

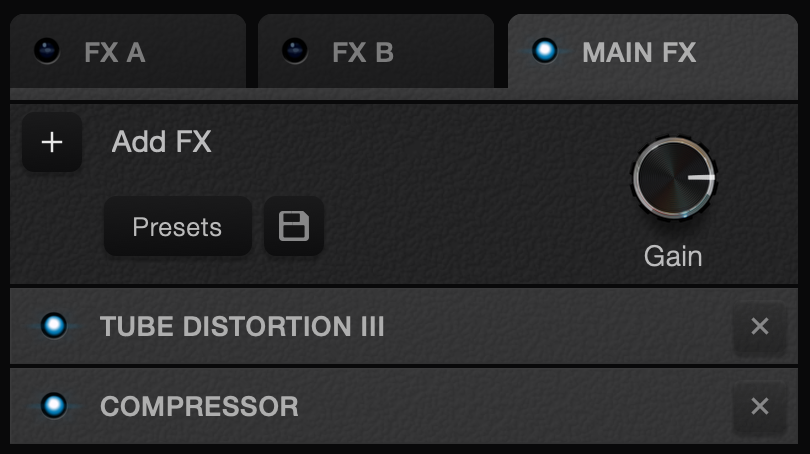

  • Effects are organised into 3 busses: FX A, FX B, and Main FX
  • FX A and B are processed individually, and each of their outputs are mixed together and passed to the Main FX bus

Adding Effects

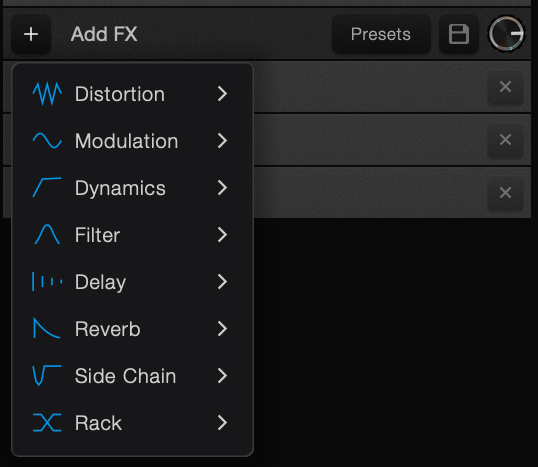

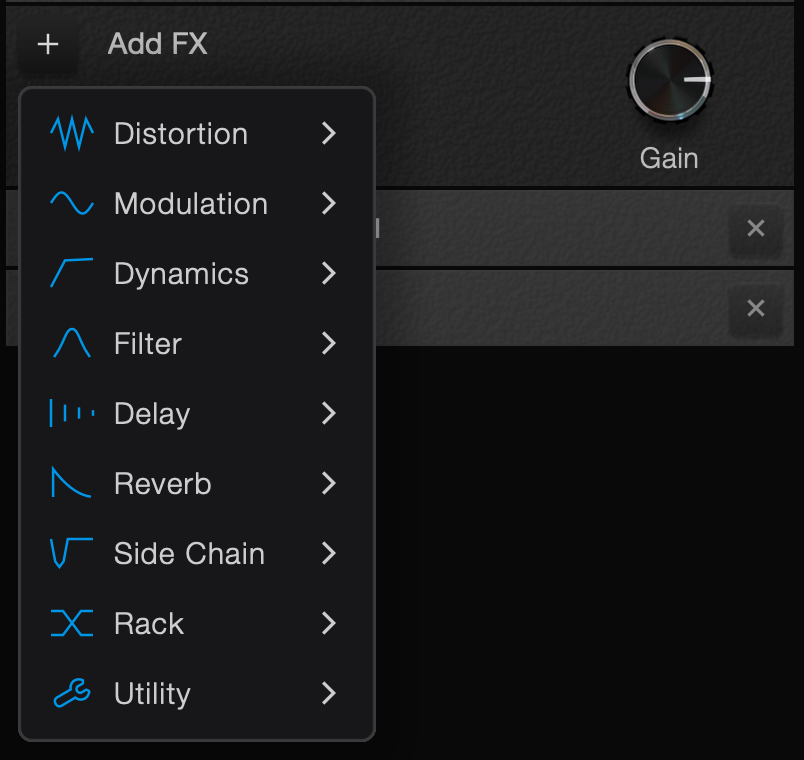

  • Click the plus button to add a new effect to the bus.
  • You can add up to 6 of each effect type to your patch.

Adjusting the Effect Controls

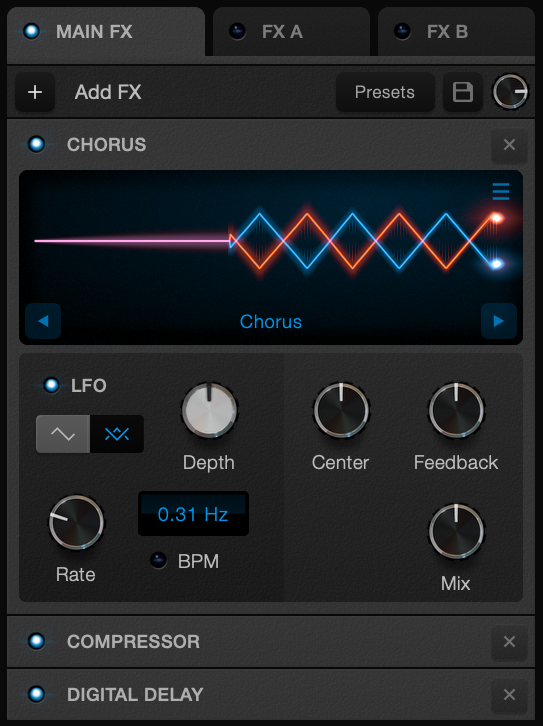

  • Click the effect name to expand and view the effect controls

Changing the Order of Effects

  • You can drag effects within the bus list to change their order
  • You can drag effects between busses by hovering over the bus tabs at the top right

Bus Output Gain

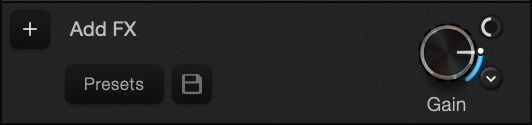

  • All busses have a Gain control which can increase or decrease the signal level.
  • If you want to modulate this control, drag a mod source to it and hover. This will expand the bus heading and allow you to see the modulation controls for the gain knob.
Authored on 5 Dec 2024. Last updated 23 Jul 5:27:39 am.
