The Noise Oscillator can be used to add grit to your patches.

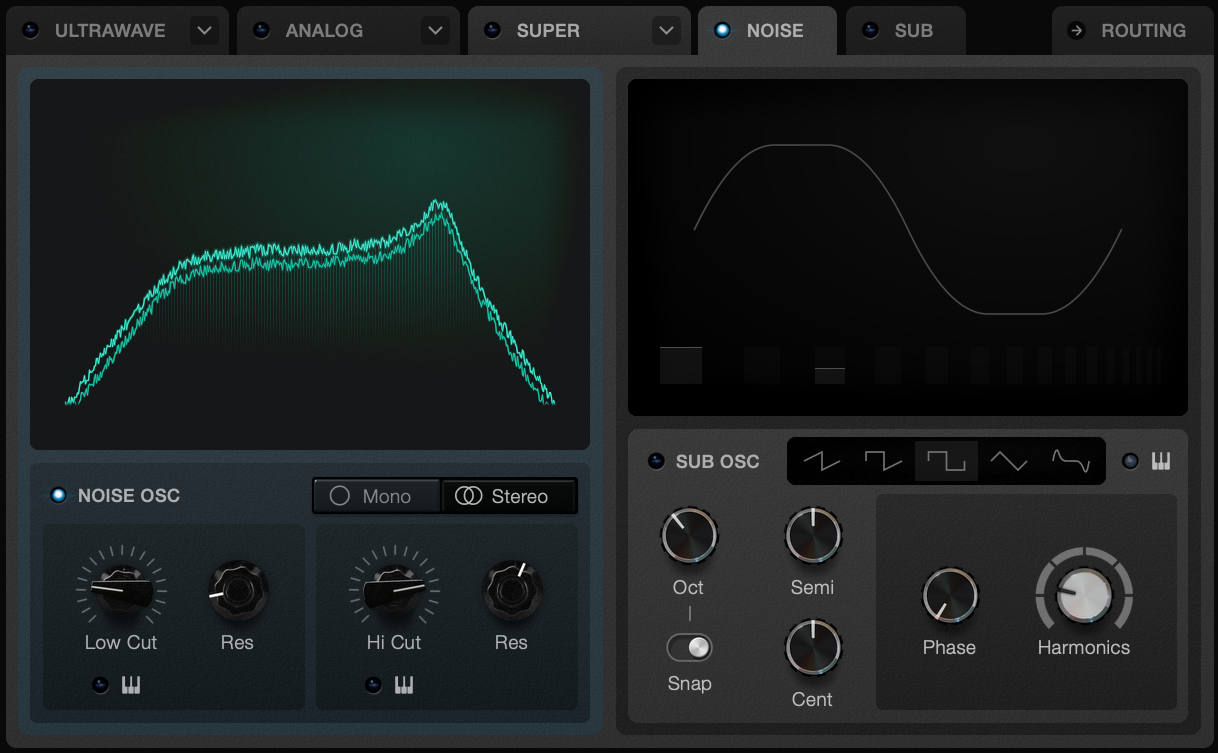

• Noise Screen
  Shows a representation of the noise osc, as an EQ curve.
• Noise enabled button
  Turns the noise osc on or off.
• Mono / Stereo switch
  Configures the noise as mono or stereo. In mono mode, one noise signal is used for both channels. In stereo mode, two separate noise signals are generated.
• Low cut knob
  Controls the frequency of a low cut filter. Set the knob to 20hz to allow the low end content of the noise to come through
• Low cut resonance knob
  Adds a resonant peak at the low cut frequency
• Keyfollow switch
  When enabled, the low cut frequency matches the frequency of the played note, and the low cut knob becomes an offset knob
• High cut knob
  Controls the frequency of a high cut filter. Set the knob to 20,000 Hz to allow the high end content of the noise to come through
• High cut resonance knob
  Adds a resonant peak at the high cut frequency
• Keyfollow switch
  When enabled, the high cut frequency matches the frequency of the played note, and the high cut knob becomes an offset knob
